COMEUP HV 15 Hydraulic Winch - Power, Breakdown & Performance for Off-Road
THE COMEUP HV 15 hydraulic winch is designed to meet the requirements of professionals and enthusiasts ofoff-road, towing and 4x4 rescue. With a 6.8 ton (15,000 lb) pulling capacity and a robust hydraulic motor, this winch guarantees reliable performance in the most extreme conditions.
Why choose the COMEUP HV 15 winch?
✔ 6,800 kg pulling capacity – Ideal for heavy vehicles and industrial applications.
✔ Constant torque hydraulic motor – Smooth and constant operation thanks to its 156 cm³/rev engine.
✔ Fast line speed - Until 9 m/min at a flow rate of 60 l/min for efficient work.
✔ High security brake – Braking system Coil spring and non-return valve for optimal load retention.
✔ 2-stage planetary gears – Transmission report of 19.4:1 for increased power and efficiency.
✔ Robust design – Die-cast aluminum housing and steel drum for a extreme durability.
✔ Ergonomic clutch – T-handle for quick cable unwinding.
✔ Complies with international standards – Complies with regulations EN 14492-1, SAE J706 and CE for optimal security.
Technical Specifications
- Traction capacity : 6,800 kg / 15,000 lb
- Max oil flow : 60 l/min
- Operating pressure : 150 bars / 2,175 psi
- Hydraulic motor : 156 cm³/rev
- Reduction ratio : 19.4:1
- Brake : Brake Coil spring and non-return valve
- Winch weight : 72 kg

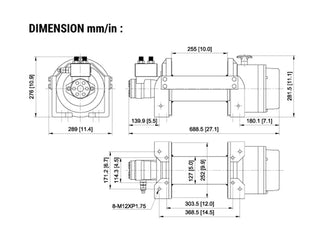

- Dimensions Colis : 735 x 430 x 335 mm
- Total weight with accessories : 88 kg
- Recommended cable : Steel 14 mm x 27 m (resistance 137 kN)
Accessories Included
✔ Roller cable guide
✔ Non-return valve (Over-center valve)
FAQ - Everything you need to know about the COMEUP HV 15 Hydraulic Winch
💡 Is this winch suitable for off-road vehicles?
Yes, it is ideal for vehicles of recovery, heavy trailers, trucks and 4x4s requiring powerful and reliable traction.
⚙️ Can it be used with synthetic cable?
Yes, but it is recommended to install a specific cable guide to avoid premature wear of the cable.
🛠️ What are the prerequisites for installation?
The winch requires a high pressure hydraulic circuit (150 bars) and a hydraulic pump or power take-off (PTO).
📜 What is the product warranty?
The COMEUP HV 15 winch is guaranteed 12 months against any manufacturing defect.
COMEUP HV 15 Hydraulic Winch - Power, Breakdown & Performance for Off-Road
THE COMEUP HV 15 hydraulic winch is designed to meet the requirements of professionals and enthusiasts ofoff-road, towing and 4x4 rescue. With a 6.8 ton (15,000 lb) pulling capacity and a robust hydraulic motor, this winch guarantees reliable performance in the most extreme conditions.
Why choose the COMEUP HV 15 winch?
✔ 6,800 kg pulling capacity – Ideal for heavy vehicles and industrial applications.
✔ Constant torque hydraulic motor – Smooth and constant operation thanks to its 156 cm³/rev engine.
✔ Fast line speed - Until 9 m/min at a flow rate of 60 l/min for efficient work.
✔ High security brake – Braking system Coil spring and non-return valve for optimal load retention.
✔ 2-stage planetary gears – Transmission report of 19.4:1 for increased power and efficiency.
✔ Robust design – Die-cast aluminum housing and steel drum for a extreme durability.
✔ Ergonomic clutch – T-handle for quick cable unwinding.
✔ Complies with international standards – Complies with regulations EN 14492-1, SAE J706 and CE for optimal security.
Technical Specifications
- Traction capacity : 6,800 kg / 15,000 lb
- Max oil flow : 60 l/min
- Operating pressure : 150 bars / 2,175 psi
- Hydraulic motor : 156 cm³/rev
- Reduction ratio : 19.4:1
- Brake : Brake Coil spring and non-return valve
- Winch weight : 72 kg
- Dimensions Colis : 735 x 430 x 335 mm
- Total weight with accessories : 88 kg
- Recommended cable : Steel 14 mm x 27 m (resistance 137 kN)
Accessories Included
✔ Roller cable guide
✔ Non-return valve (Over-center valve)
FAQ - Everything you need to know about the COMEUP HV 15 Hydraulic Winch
💡 Is this winch suitable for off-road vehicles?
Yes, it is ideal for vehicles of recovery, heavy trailers, trucks and 4x4s requiring powerful and reliable traction.
⚙️ Can it be used with synthetic cable?
Yes, but it is recommended to install a specific cable guide to avoid premature wear of the cable.
🛠️ What are the prerequisites for installation?
The winch requires a high pressure hydraulic circuit (150 bars) and a hydraulic pump or power take-off (PTO).
📜 What is the product warranty?
The COMEUP HV 15 winch is guaranteed 12 months against any manufacturing defect.
