CRIC JACK: Hydraulic Innovation for Off-Road Vehicles

Product Data Sheet.pdf (click here)

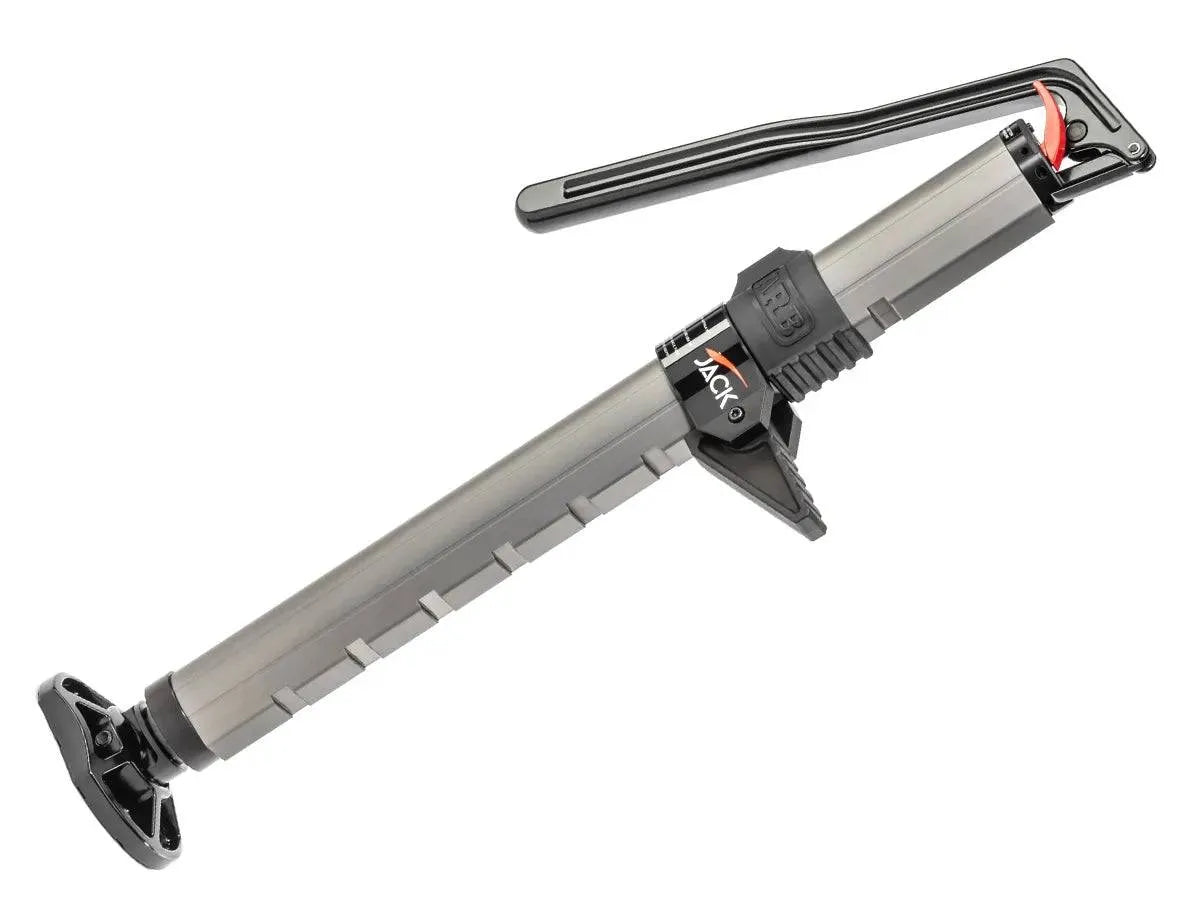

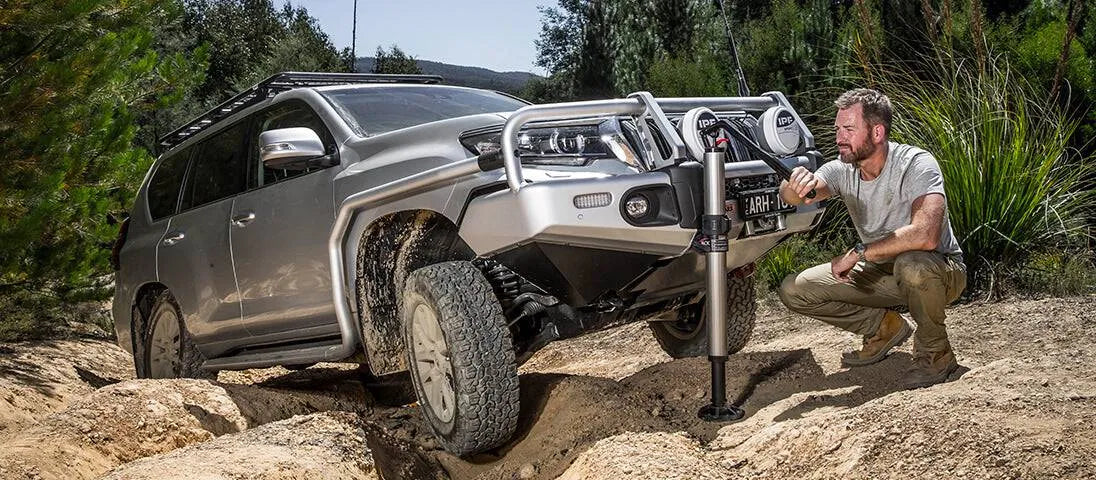

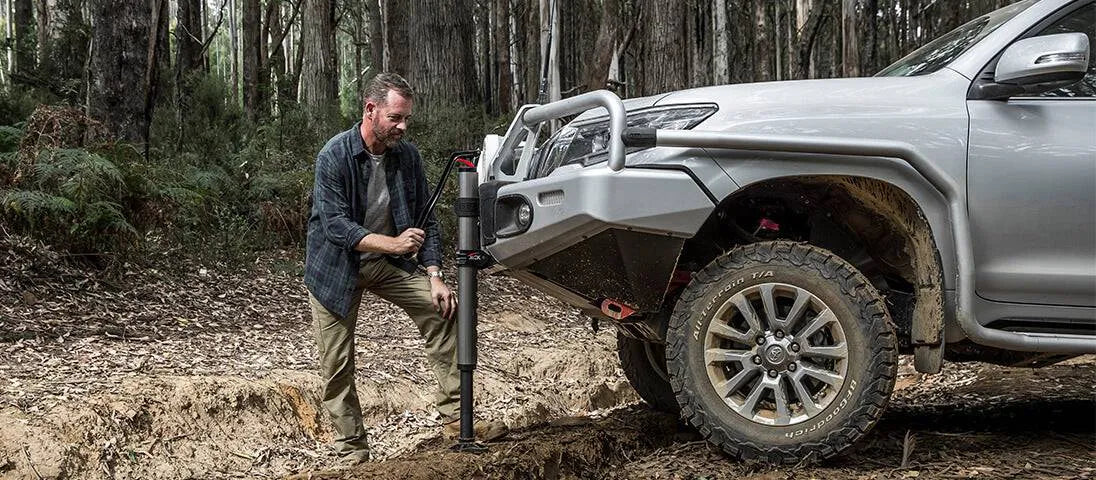

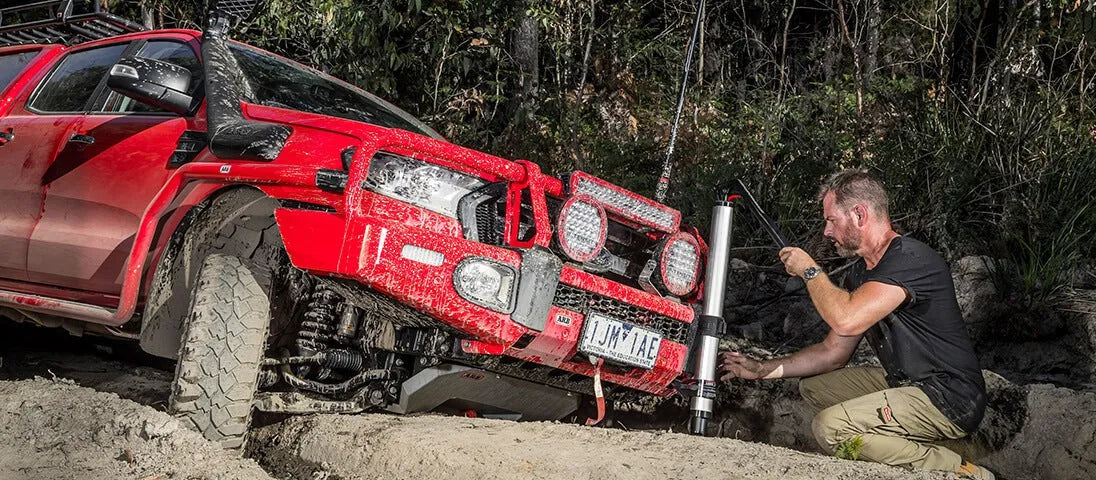

For off-road enthusiasts, it's no secret that the unexpected can happen, even when a trip is meticulously planned. When you're preparing your vehicle to tackle the toughest terrain, you can rely on the ARB JACK to support you during the most challenging recovery missions.

POWERFUL HYDRAULIC TECHNOLOGY

Unleash the power of hydraulic technology with the ARB JACK, which redefines traditional recovery methods. Activated by the slightest pressure on its handle, this hydraulic prodigy smoothly lifts your vehicle in 13 mm increments with each stroke. The integrated black rubber bumper protects your vehicle during the recovery process.

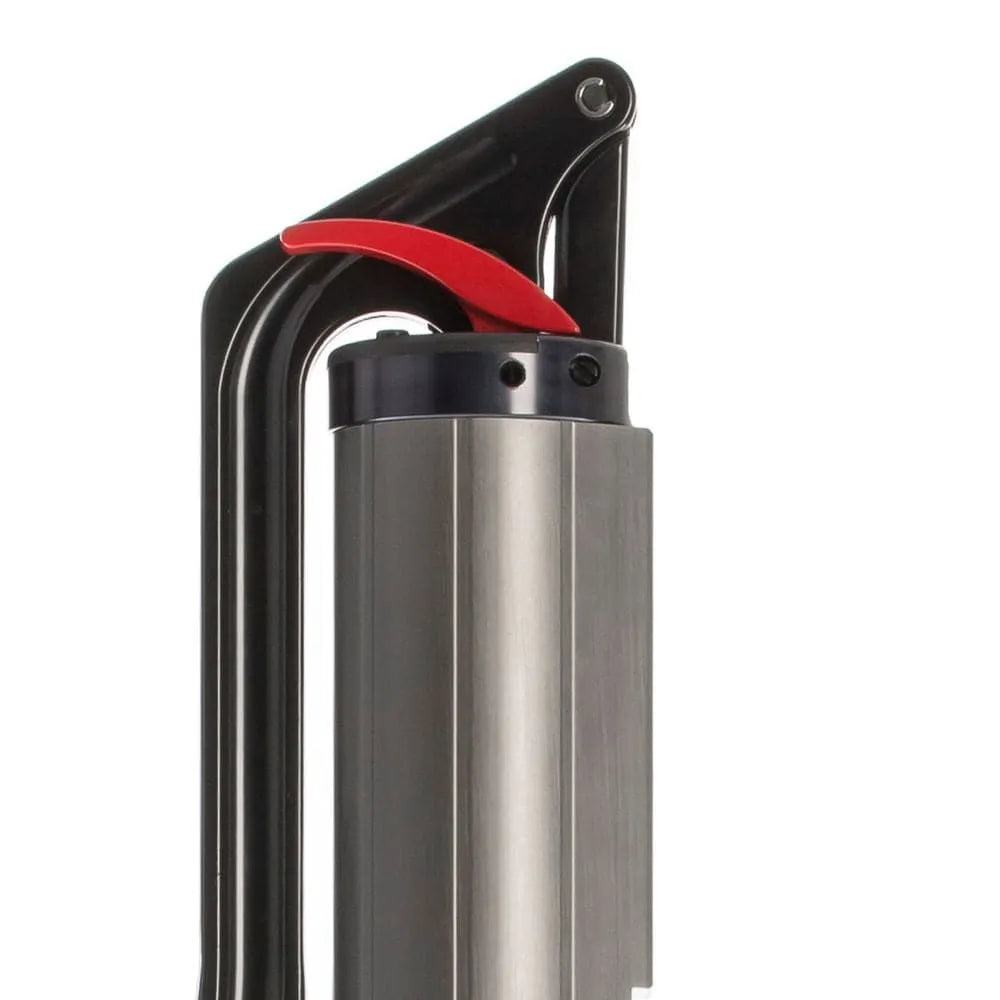

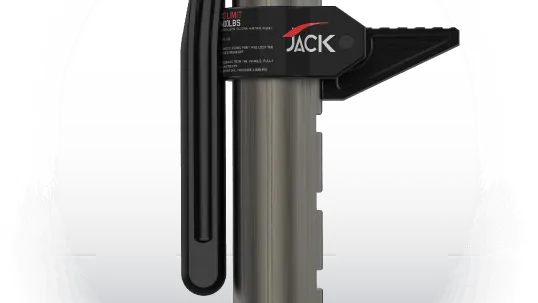

Quickly lower your vehicle with the easily accessible red lowering lever, which features two-stage lowering and a safety stop for safe handling. Enjoy two lowering speeds, allowing for both controlled and rapid descents with a simple press of the lever.

A DISCREET APPROACH

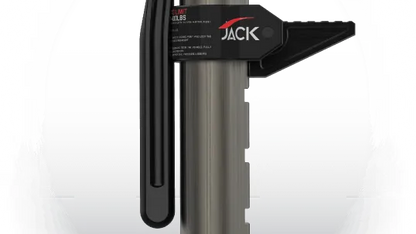

Designed with ergonomics in mind, the elevated handle position and top pivot feature provide ultimate control without having to kneel in deep trenches. Comfort meets functionality perfectly.

READY FOR HEAVY LIFTS

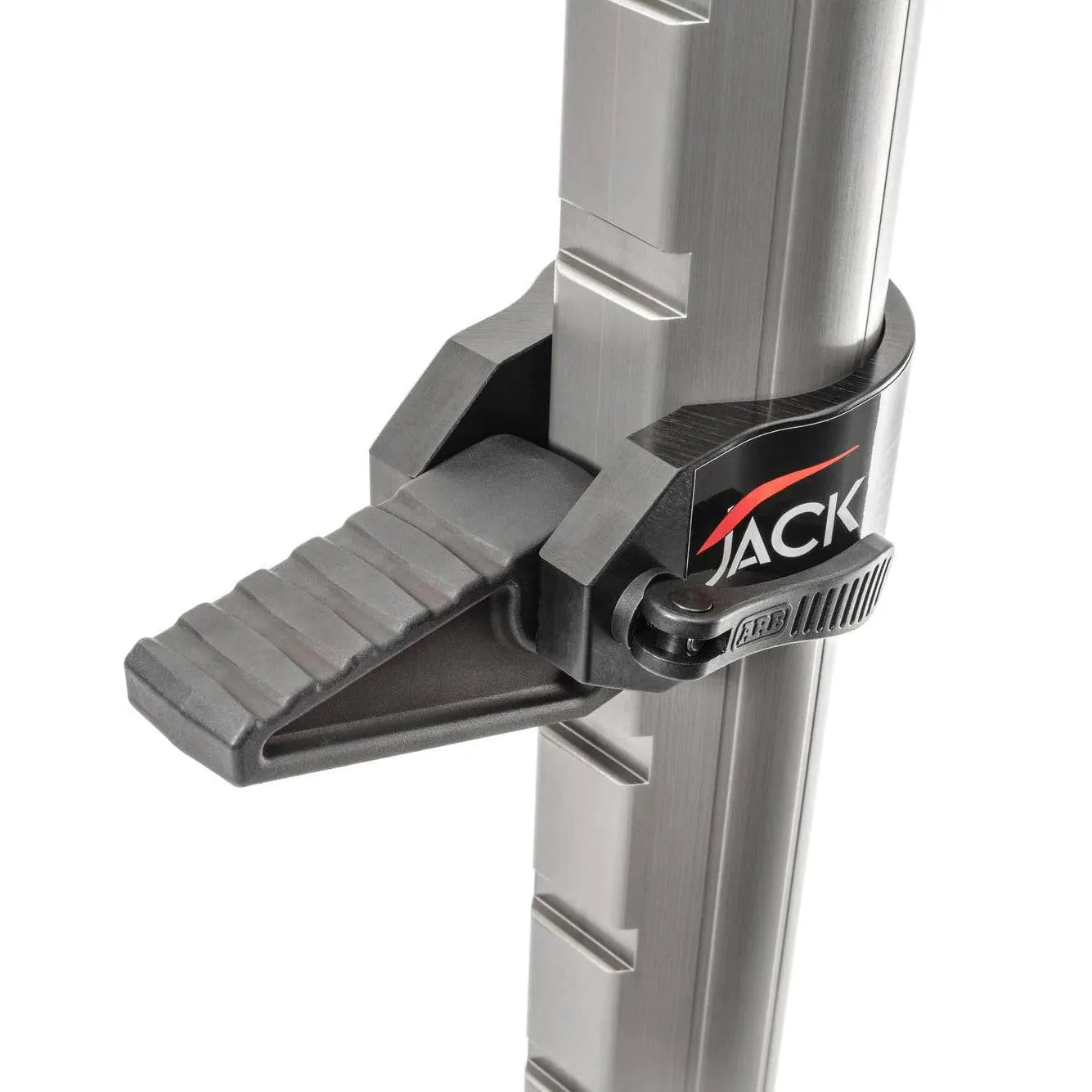

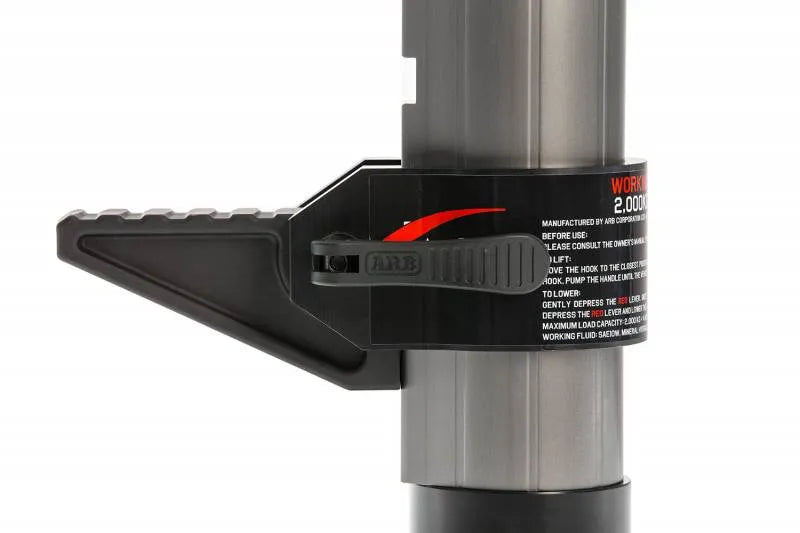

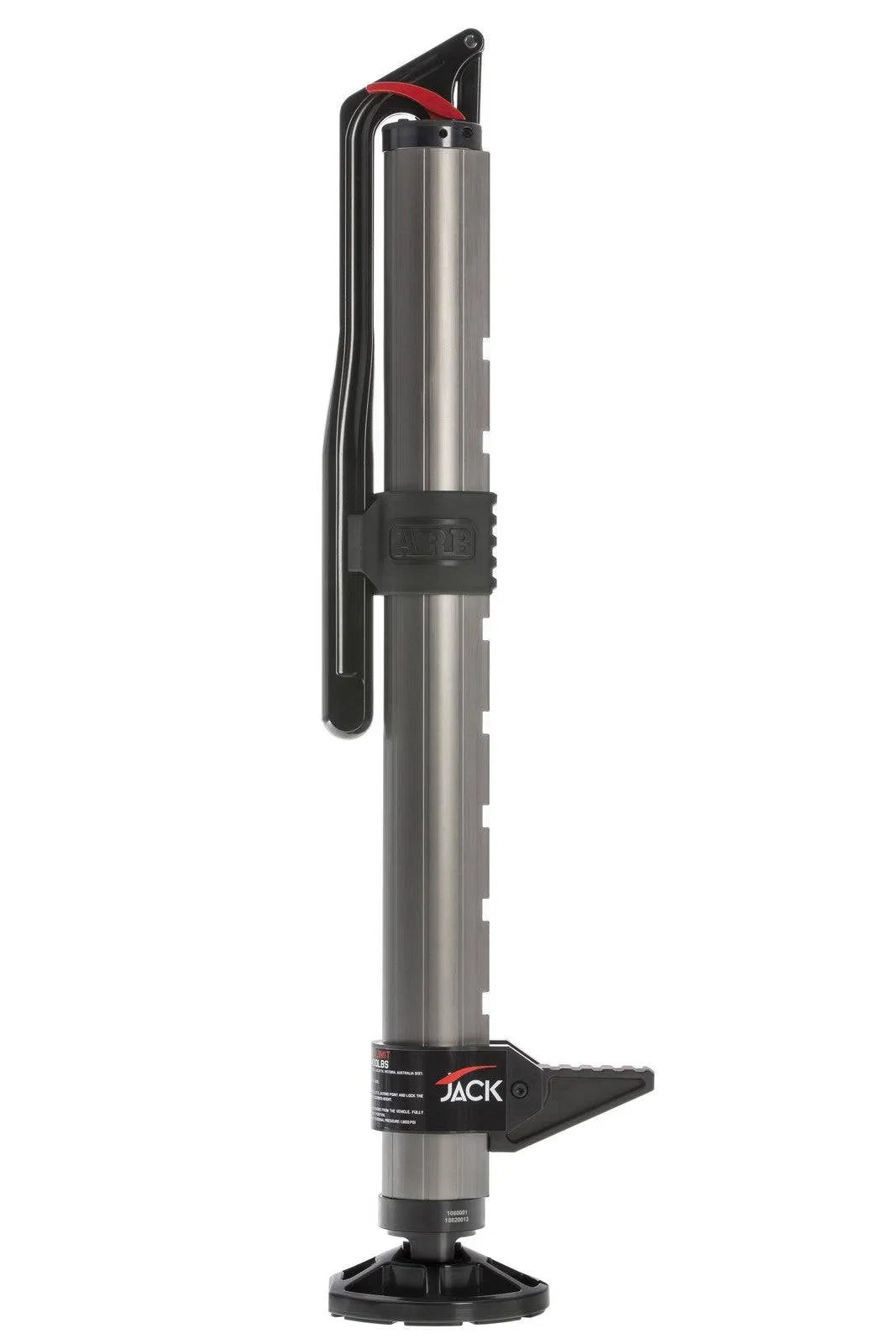

Built to withstand the toughest recovery challenges, The body of the Jack is made of 6061 T6 aircraft-grade aluminum for maximum strength. With 9 attachment points along the body, it allows for a wide range of lifting heights, capable of lifting up to 2,000 kg. An internal relief valve protects against overloads, ensuring the safety of both the jack and the user.

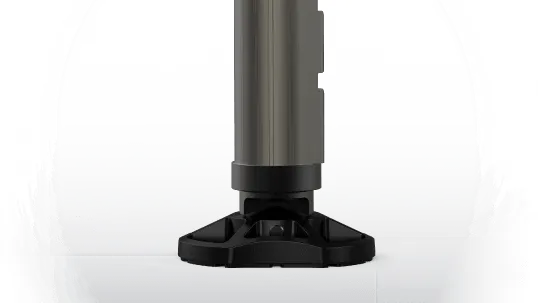

STAY ON COURSE WITH 360° ADAPTABILITY

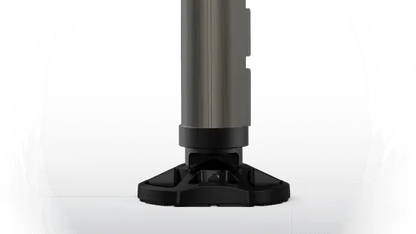

The Jack body offers 360° rotation, allowing you to align the pivoting leg with any terrain, ensuring stability during recovery.

COMPLIANCE WITH INDUSTRY STANDARDS

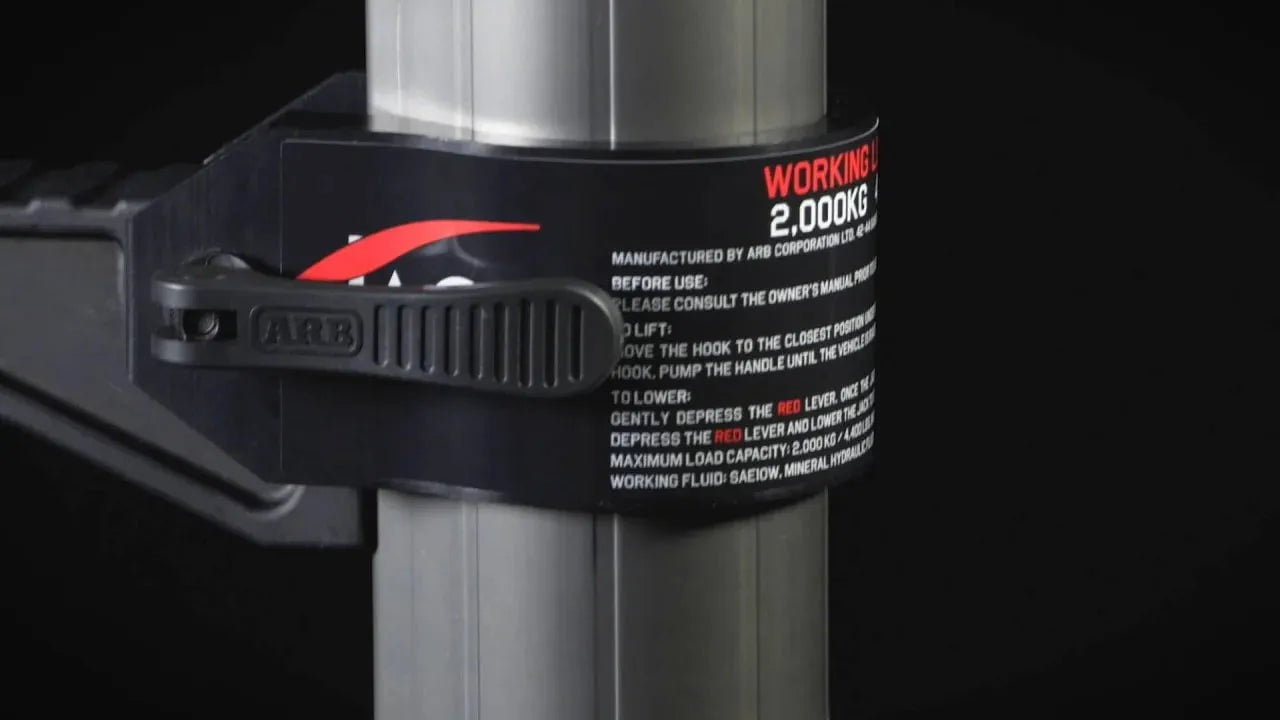

Rest easy knowing this Jack complies with industry standards and regulations, including AS/NZ 2693 – 2007 and ASME B 30.1 – 2015.

SPECIFICATIONS

• Minimum Lifting Height: 160 mm
• Maximum Lifting Height: 710 mm - 1,230 mm
• Course : 540 mm
• Lifting Range: 160 mm - 1,230 mm
• Maximum capacity: 2,000 kg
• Compressed Height: 890 mm
• Extended Height: 1,432 mm
• Weight: 10.5 kg
• Millimeters per Stroke: 13 mm

Choose this Jack Jack for a reliable, innovative and robust solution for all your off-road recovery needs.
