Hardtop Classic pour Ford Ranger Raptor 2023+ NEXT GEN - Double Cab

Technical Data Sheet - Assembly Instructions.PDF (Click here)

PLEASE NOTE : To install theHardtop, reinforcement brackets in the pickup bed must be installed. If the J-brackets have not already been ordered from your Ford dealer, you can order them from us under the following part numbers:

• For the Ford Ranger 6-RJBRACEP703
• For the Ford Ranger Raptor 6-RJBRACERAPT

Unmatched Quality, Practicality and Affordability

Discover the Hardtop Classic for the Ford Ranger Raptor 2023+ NEXT GEN. Offering a quality unmatched, a practicality maximum and a price affordable, This Hardtop presents itself as the essential accessory for your vehicle.

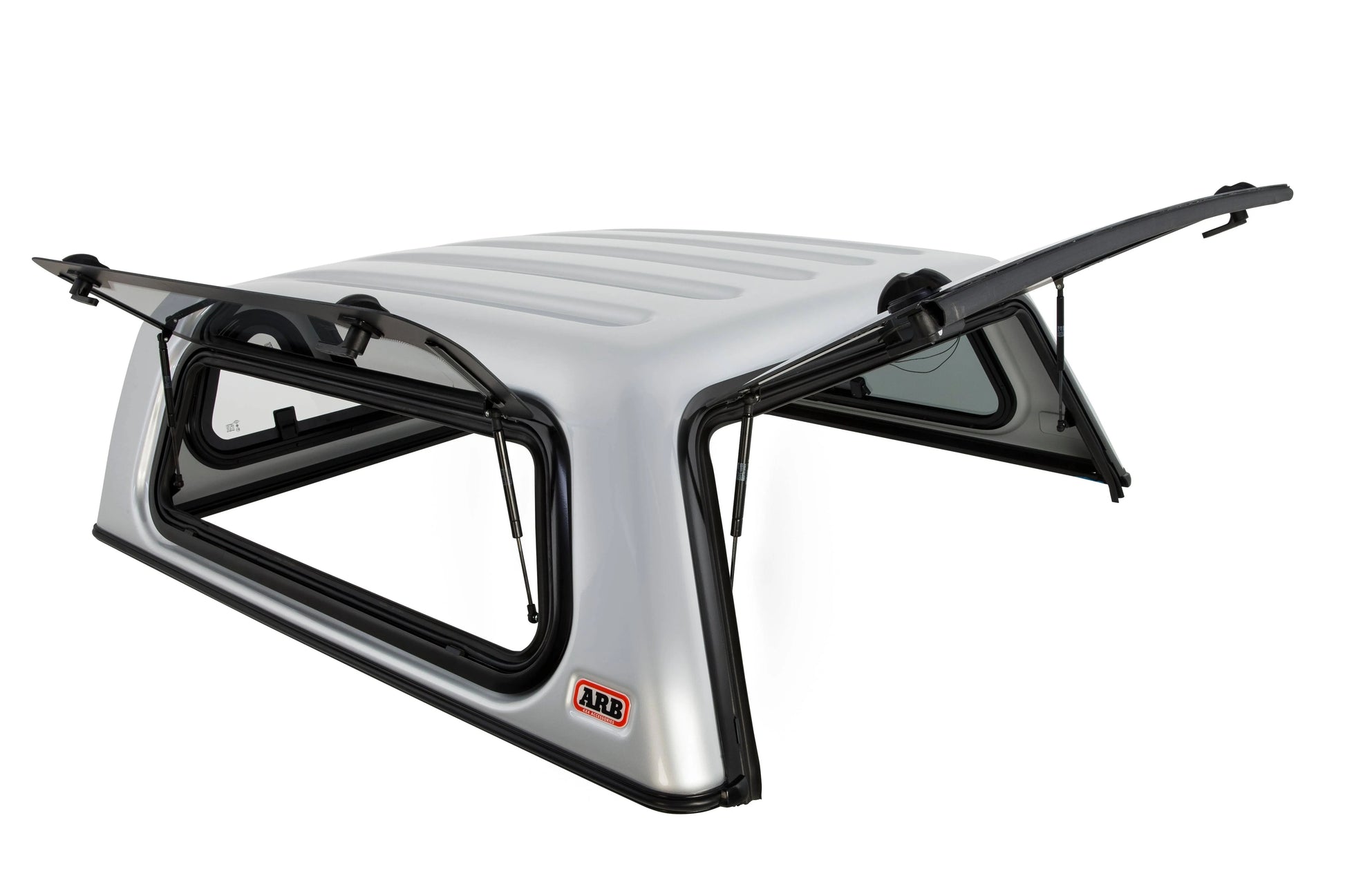

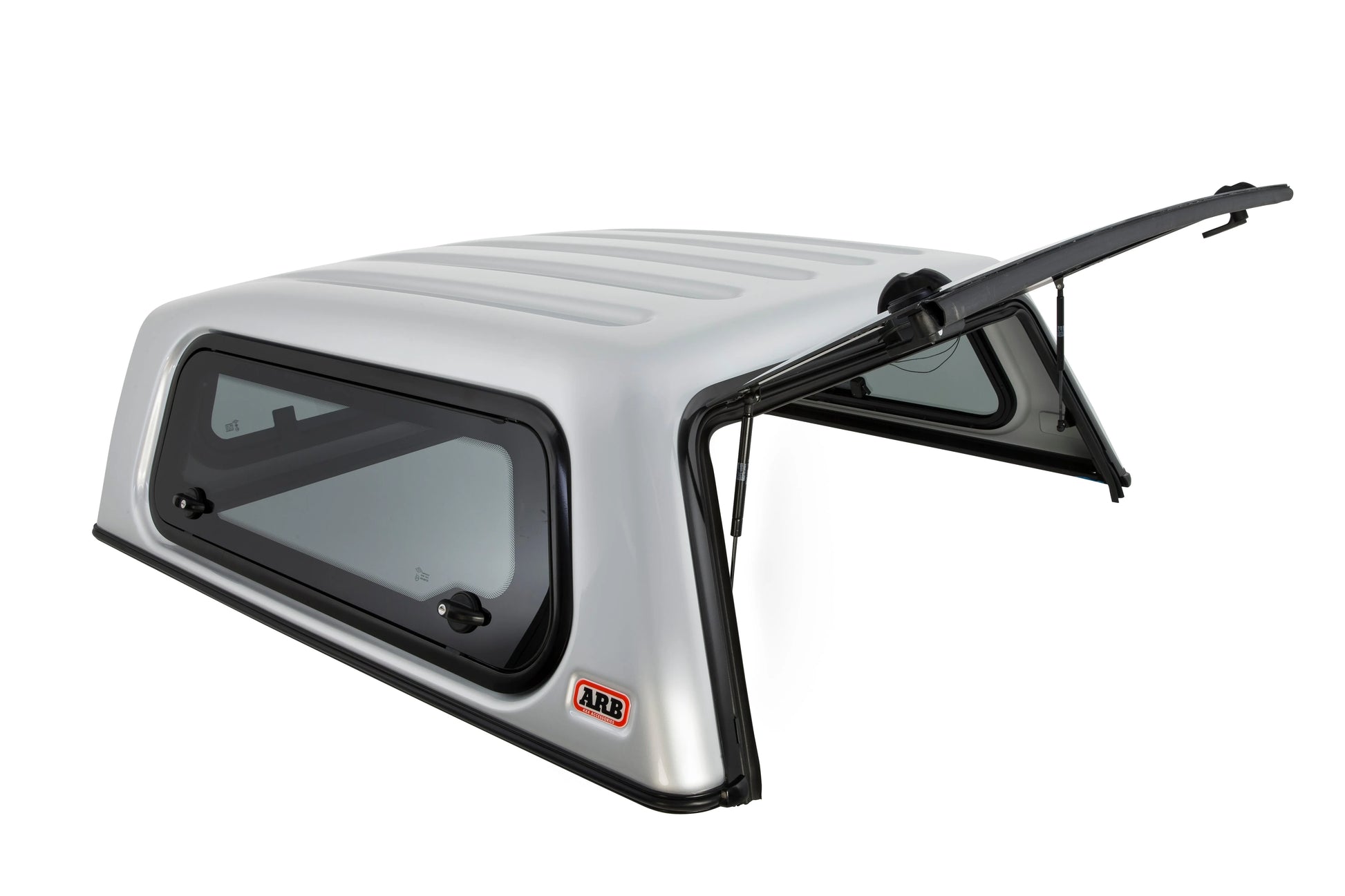

Choose between a standard height roof version with a smooth, painted exterior finish. Our sliding or lift-up side window configurations provide easy access to the load space, thanks to their low positioning on the body shell. Hardtop.

Product Specifications

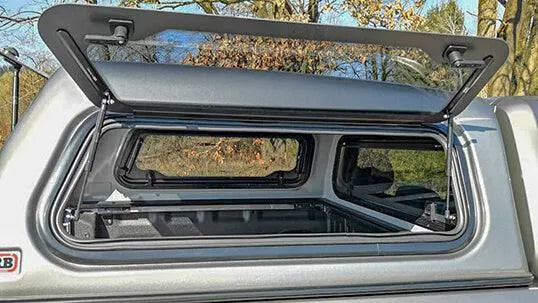

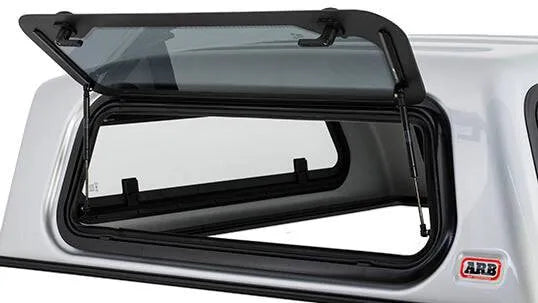

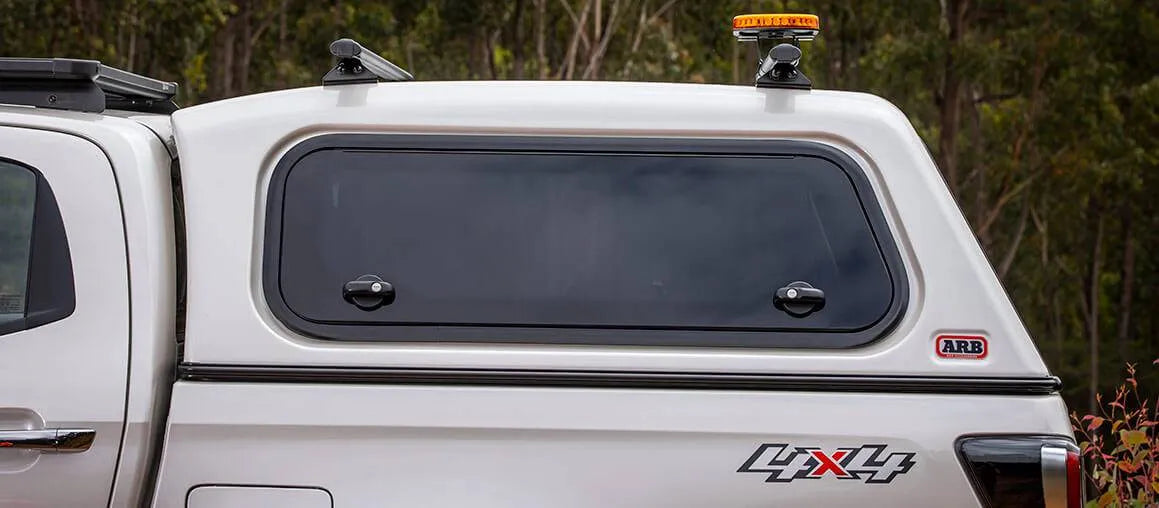

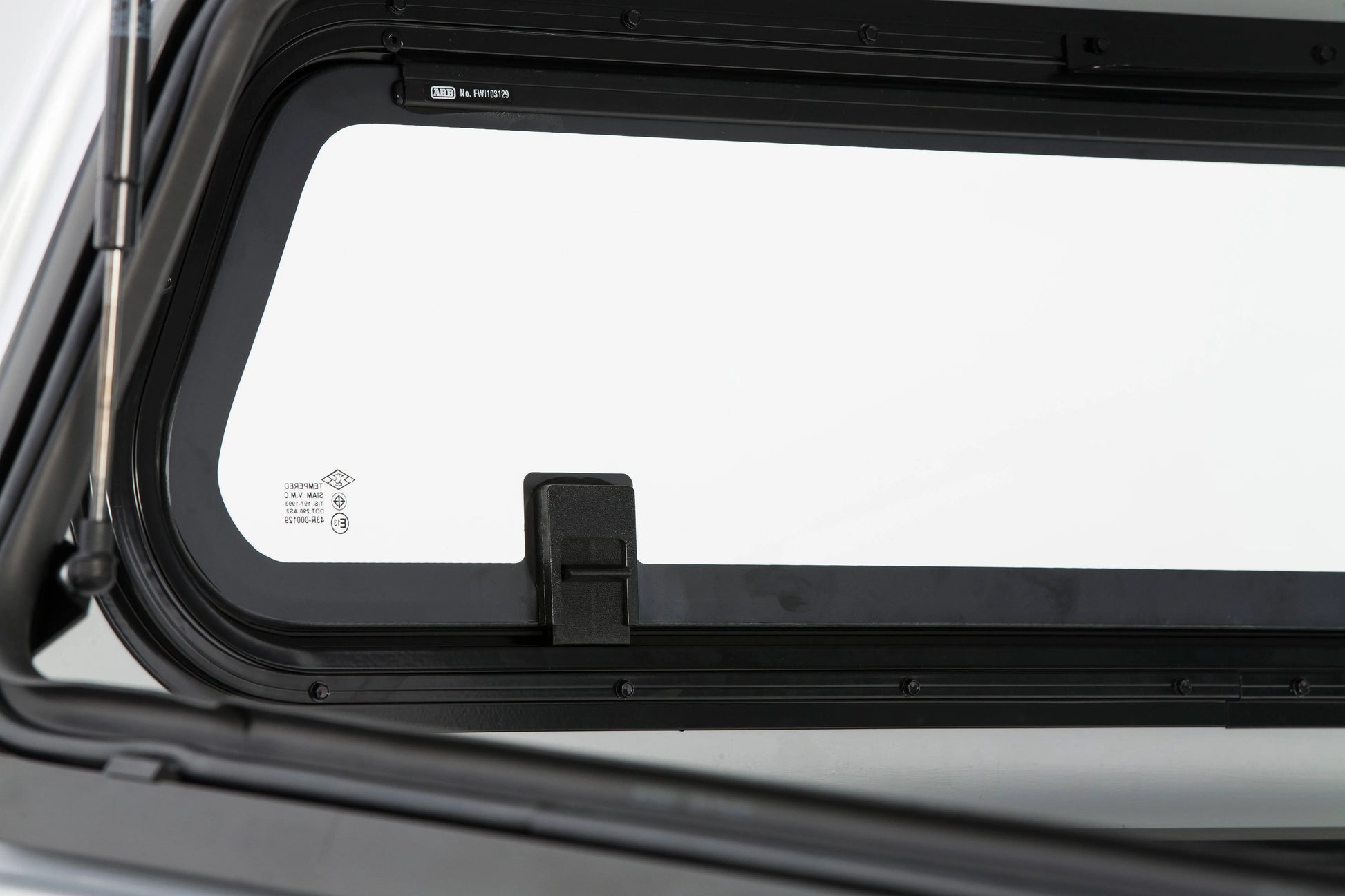

Side and Rear Windows with Locking System

The side and rear windows feature a locking system mechanical with D-handle key, guaranteeing the safety of your load.

Front Window of the Hardtop

The front window of the Hardtop is designed to offer a maximum rear vision and easy access for cleaning the rear glass of the vehicle cabin.

Innovative Rear Door

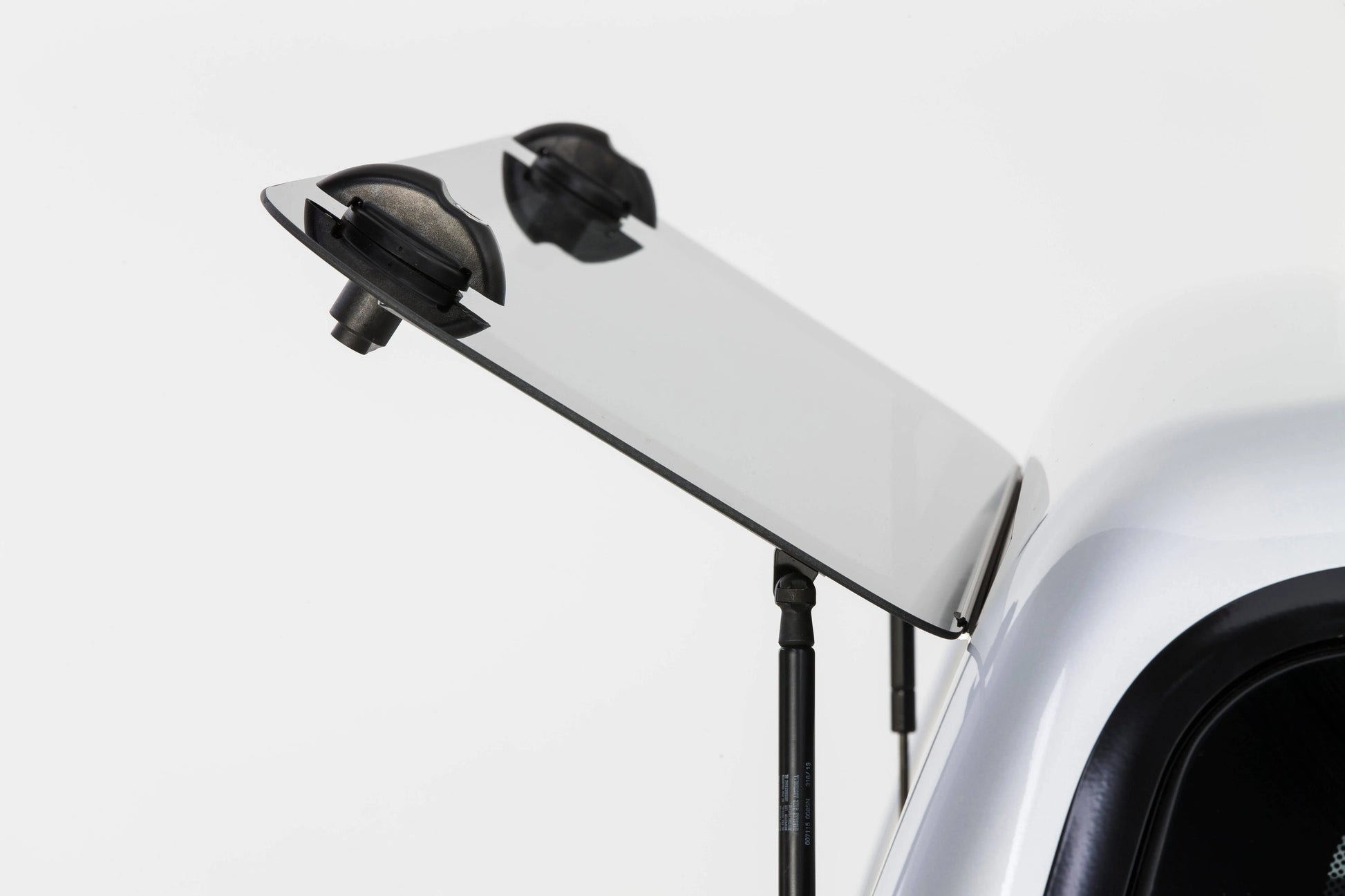

The rear door, with a 3D curved design, is made of gray tinted tempered safety glass, compliant with EC43R standards. Each door is equipped with a high-mounted LED brake light, an interior light and Gas Struts gas-fired suitable for temperatures ranging from -20°C to 90°C. The rear door glass can be replaced independently of the frame, providing a cost-effective solution in the event of accidental breakage.

ARB Unique Mounting System

The laser-cut steel mounting system ofARB is directly bolted to the vehicle's existing mounting points, ensuring a solid foundation for the Hardtop. Additional brackets reinforce the rear door and door latches.

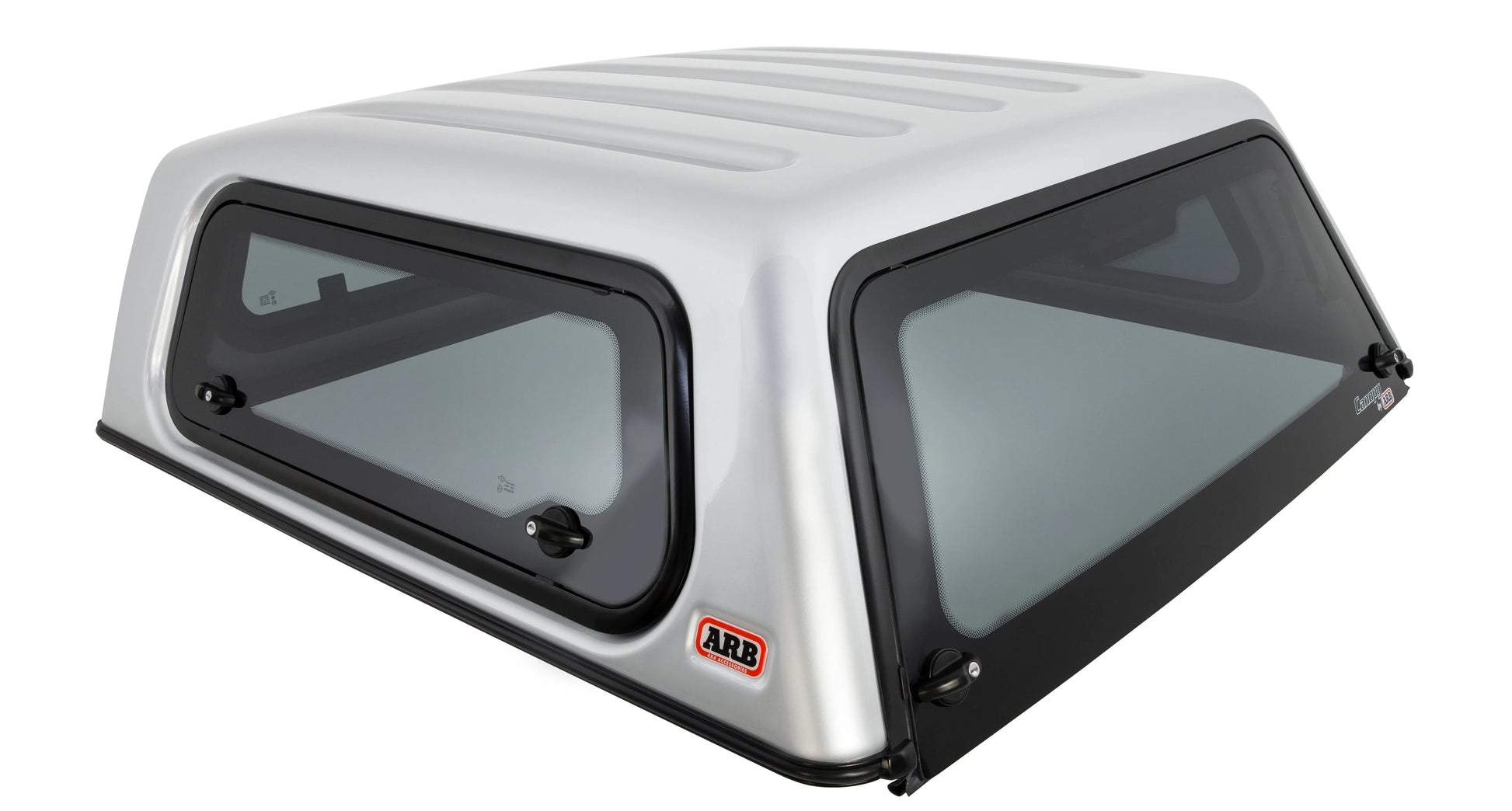

Structure Hardtop in ABS

L'Hardtop ARB are made of special co-extruded ABS plastic, ensuring strength And sustainabilityABS is a recyclable material, reducing the environmental impact at the end of the product's life.

Characteristics

• 8mm thick ABS plastic shell, resistant from -20°C to 90°C.
• 5mm thick tempered safety glass with dark grey tint (28% visual light transmission), conforming to international standard ECE43R.
• E Mark approved LED brake light.
• Mounting system of Hardtop unique.
• Side windows with key (if applicable).
