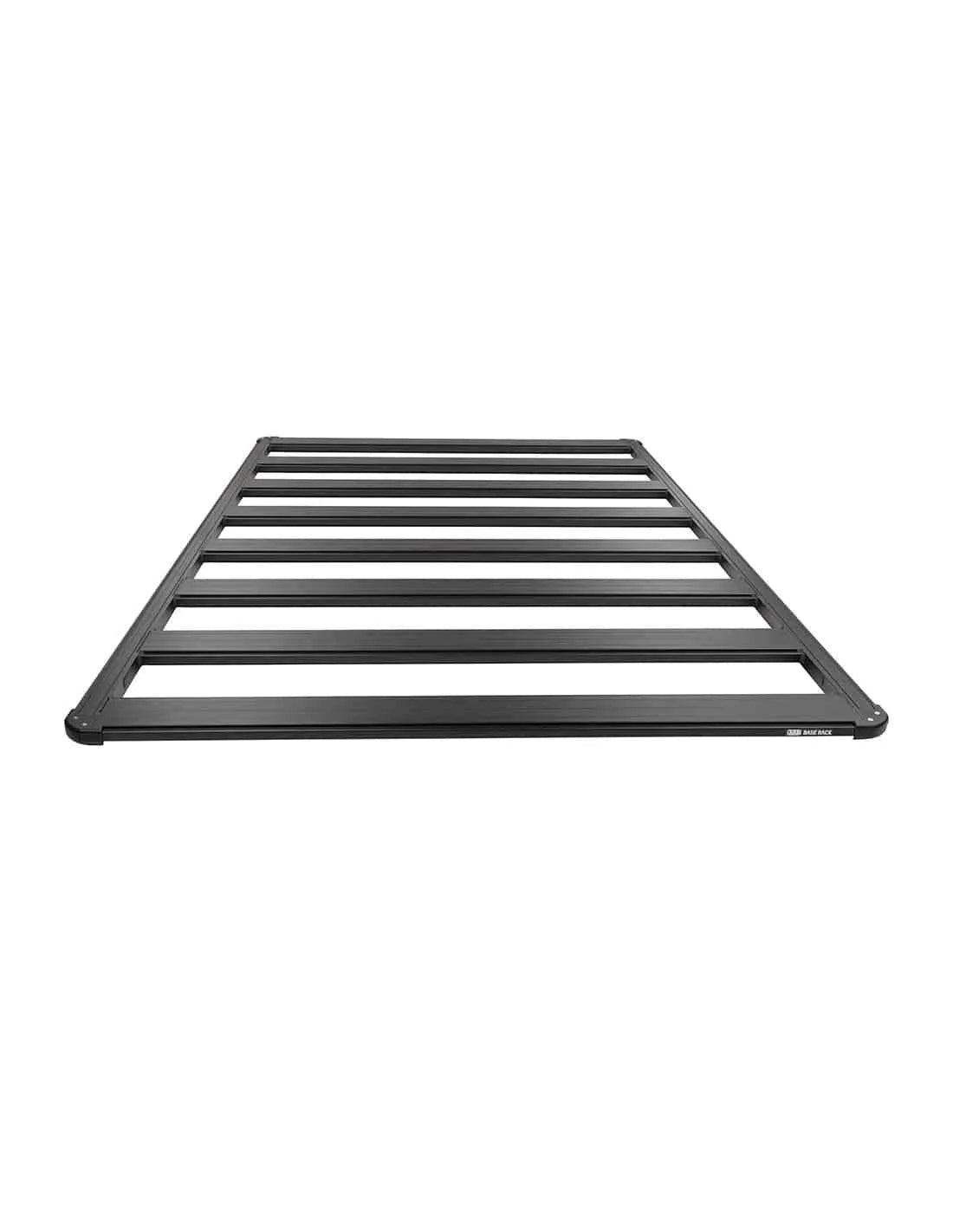

Discover the Kit Roof-Rack Suzuki Jimny XL 5 Doors - ARB Baserack, Designed for Adventure: Lightweight, Strong and Ultra Customizable (Wind Deflector Included)

Equip your Suzuki Jimny XL 5 Doors with one of the most advanced galleries on the market: the ARB BASE Rack. Entirely made of extruded aluminum, ultra-flat and without subframe, it combines extreme robustness and modern design to meet all your OffRoad outings and your independent road trips.

A Low and Resistant Design for Perfect Road Holding

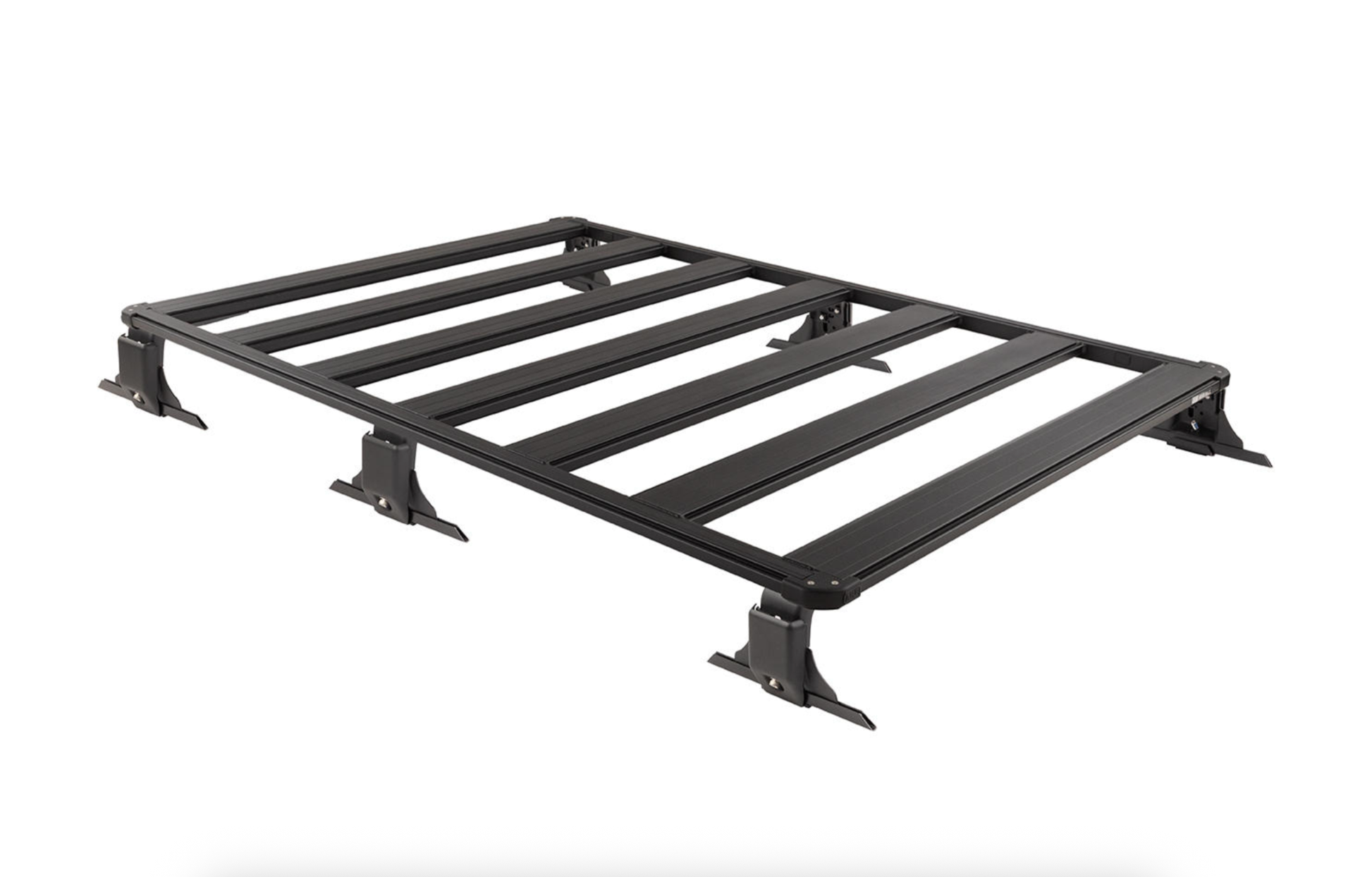

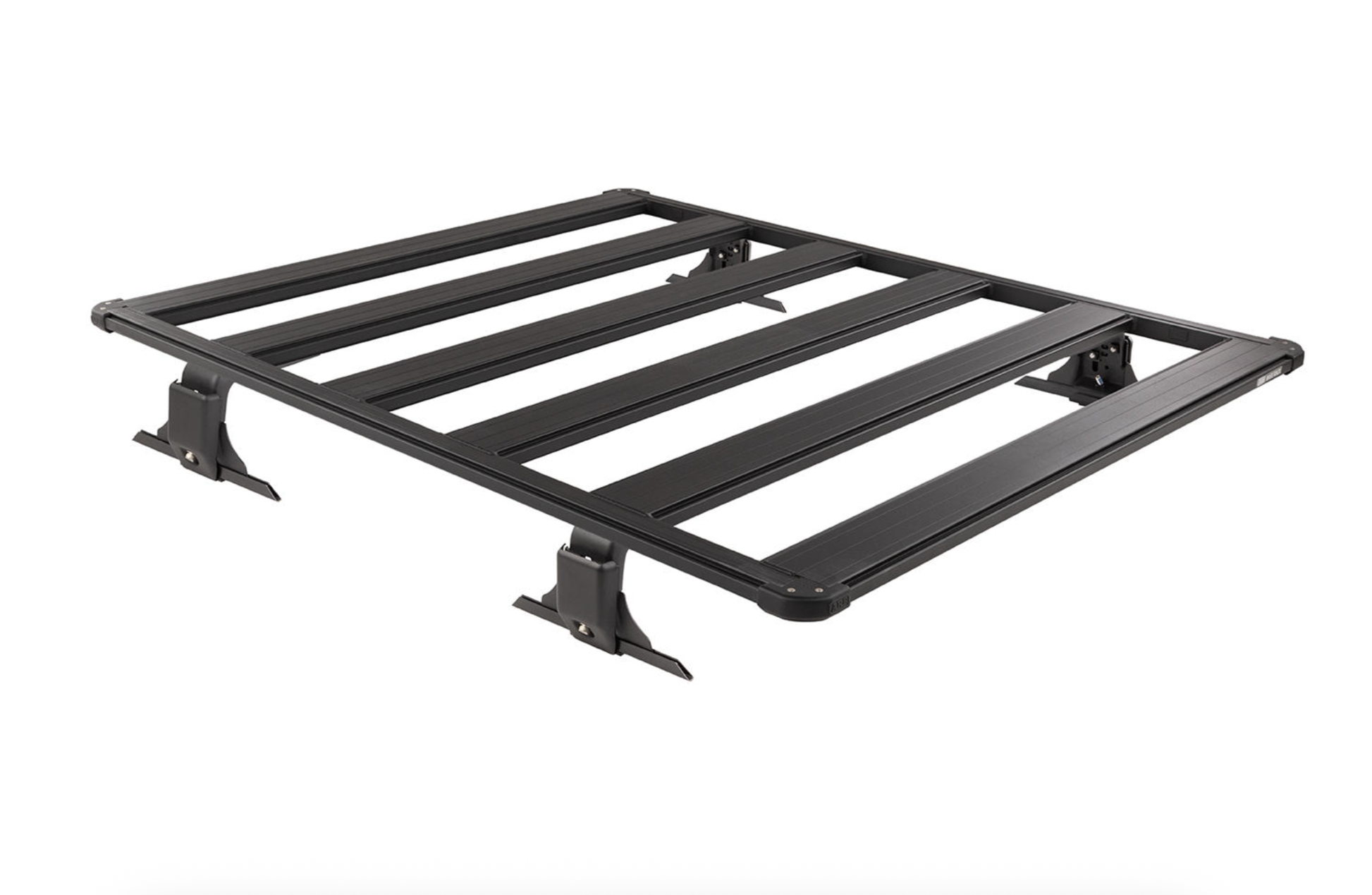

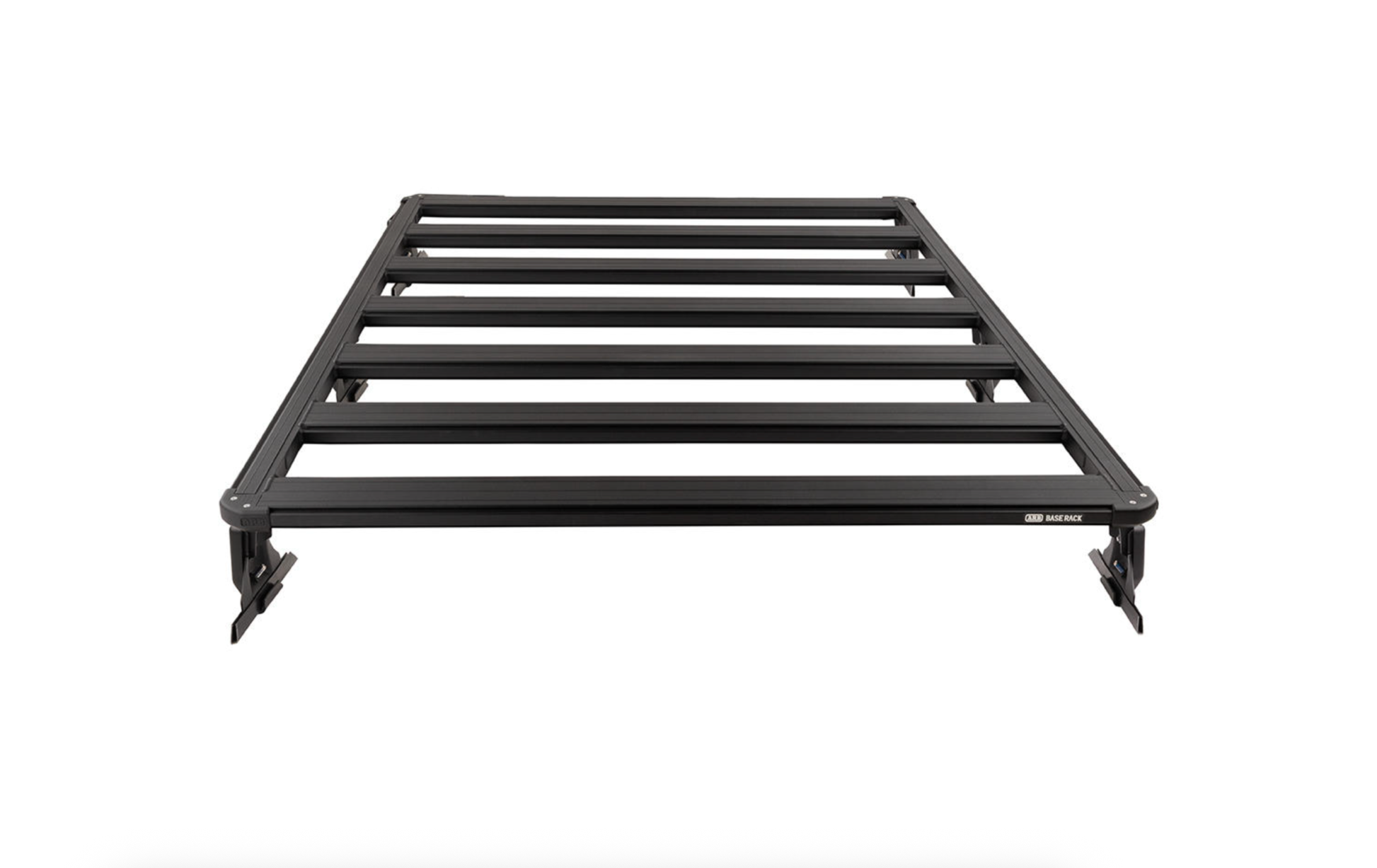

Thanks to its welded structure without a subframe, the BASE Rack attaches as close as possible to the roof. This low mounting improves aerodynamics and limits wind resistance, while ensuring uncompromising strength – even on the track or in challenging off-road conditions.

Revolutionary and Quick Fixing of Accessories

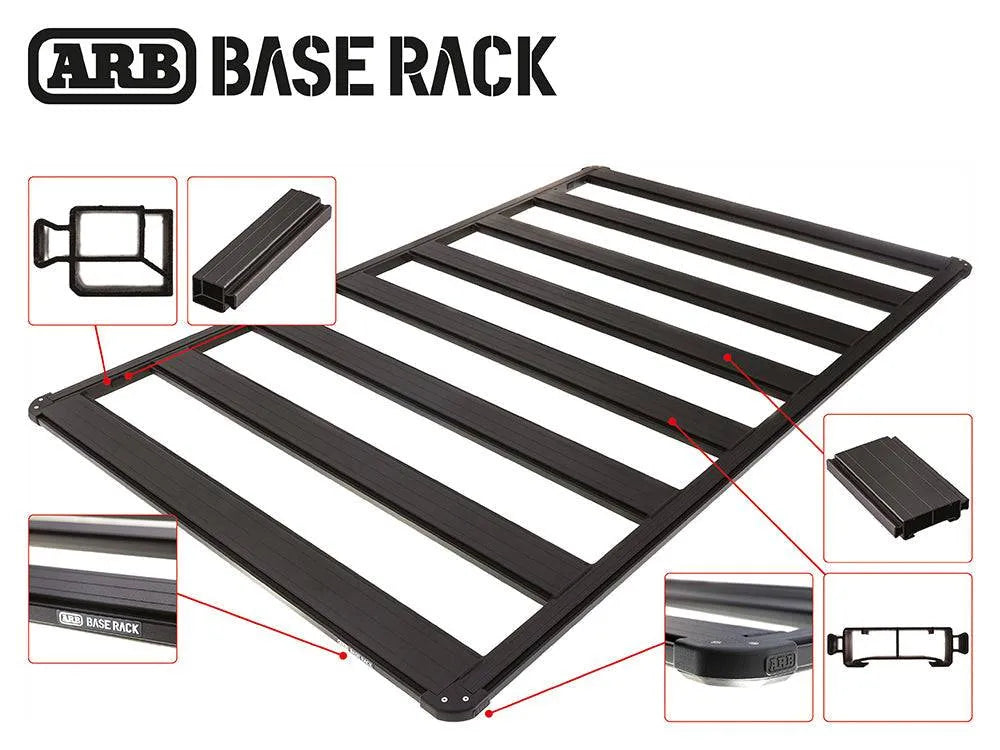

Exclusive technology in dovetail over the entire surface of the Roof Rack (including internal crosspieces) allows for instant attachment of your equipment. No more bolts: make way for complete and rapid modularity according to your needs.

✅ Essential technical characteristics

• Made from ultra-strong extruded aluminum
• Reduced weight for maximum payload
• Direct attachment without subframe, no bending under load
• “Dovetail” technology: dovetail all around
• Compatible with T-Slot accessories (adapters sold separately)

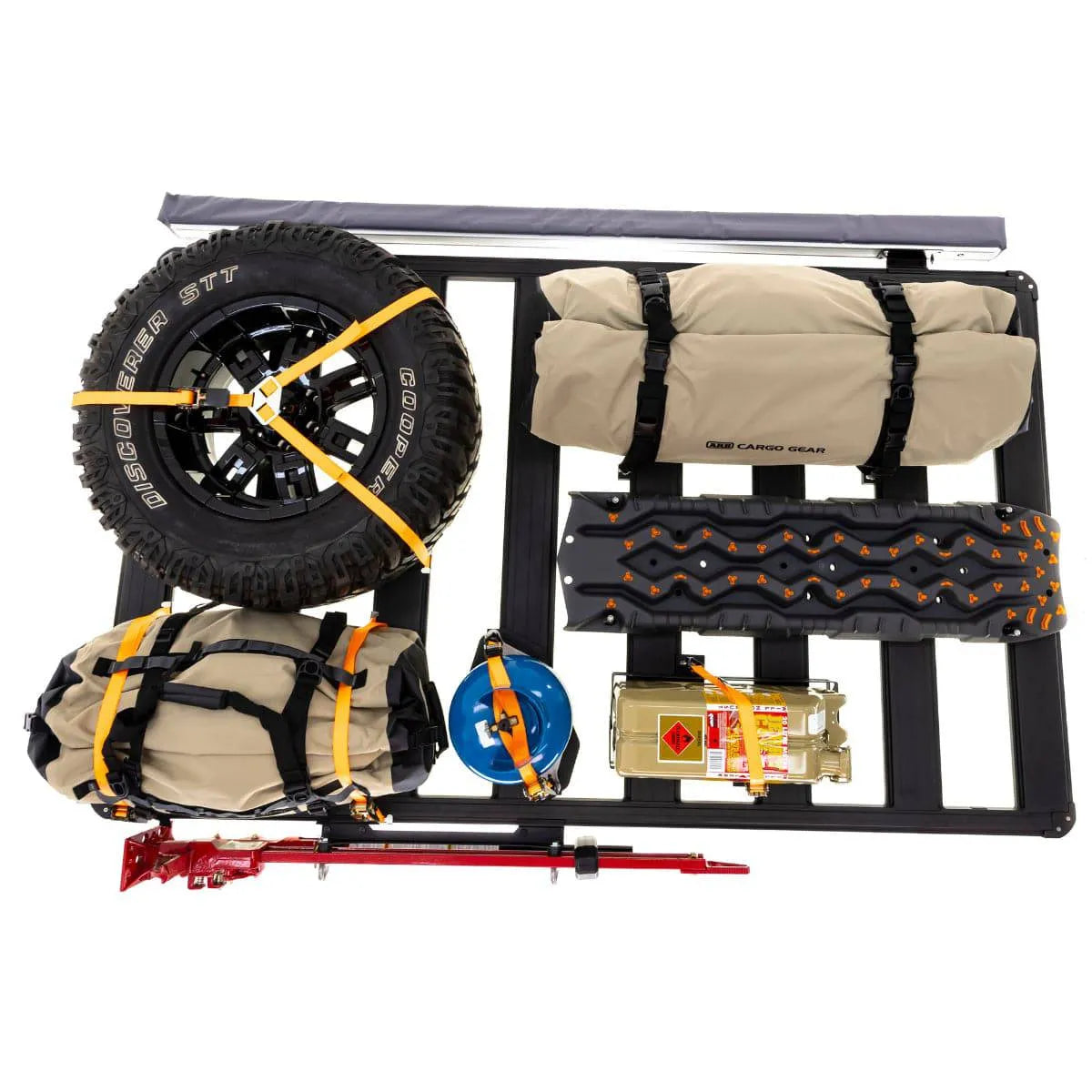

• Flat surface ideal for transporting long objects (boards, tubes, etc.)
• Dimensions of your choice: 1835 x 1285 mm Or 1545 x 1285 mm
• Estimated assembly time: 60 minutes

🚙 Compatible vehicle

• Suzuki Jimny XL 5 Doors (GJ, 09/2023 to today)
• Transmission: 4x4 | Gasoline | 5-speed manual transmission

❓FAQ - Frequently Asked Questions

Is that the Roof Rack requires drilling? No, installation is drill-free, with fasteners custom-designed for the Jimny XL.

Can I attach a Rooftop Tent ? Yes, its strength allows for the attachment of rigid or flexible tents. Be sure to respect the dynamic loads of the vehicle.

What is the load capacity of the Roof Rack ? The BASE Rack can support up to 150 kg in dynamic and more in static (depending on the roof of the vehicle).

Is this compatible with other ARB accessories? Yes, all BASE Rack accessories are compatible (wheel supports, jerry cans, LED lighting, etc.).

Is it noisy on the highway? Thanks to its ultra-low profile and aerodynamic shape, noise is significantly reduced compared to conventional galleries.
