127 Steel Diesel Fuel TankL | The Long Ranger | DEFENDER 110 & 130 from 2007 to 2017

(Diesel Only)

Assembly Instructions - Replacement Tank 127L.PDF (Click here)

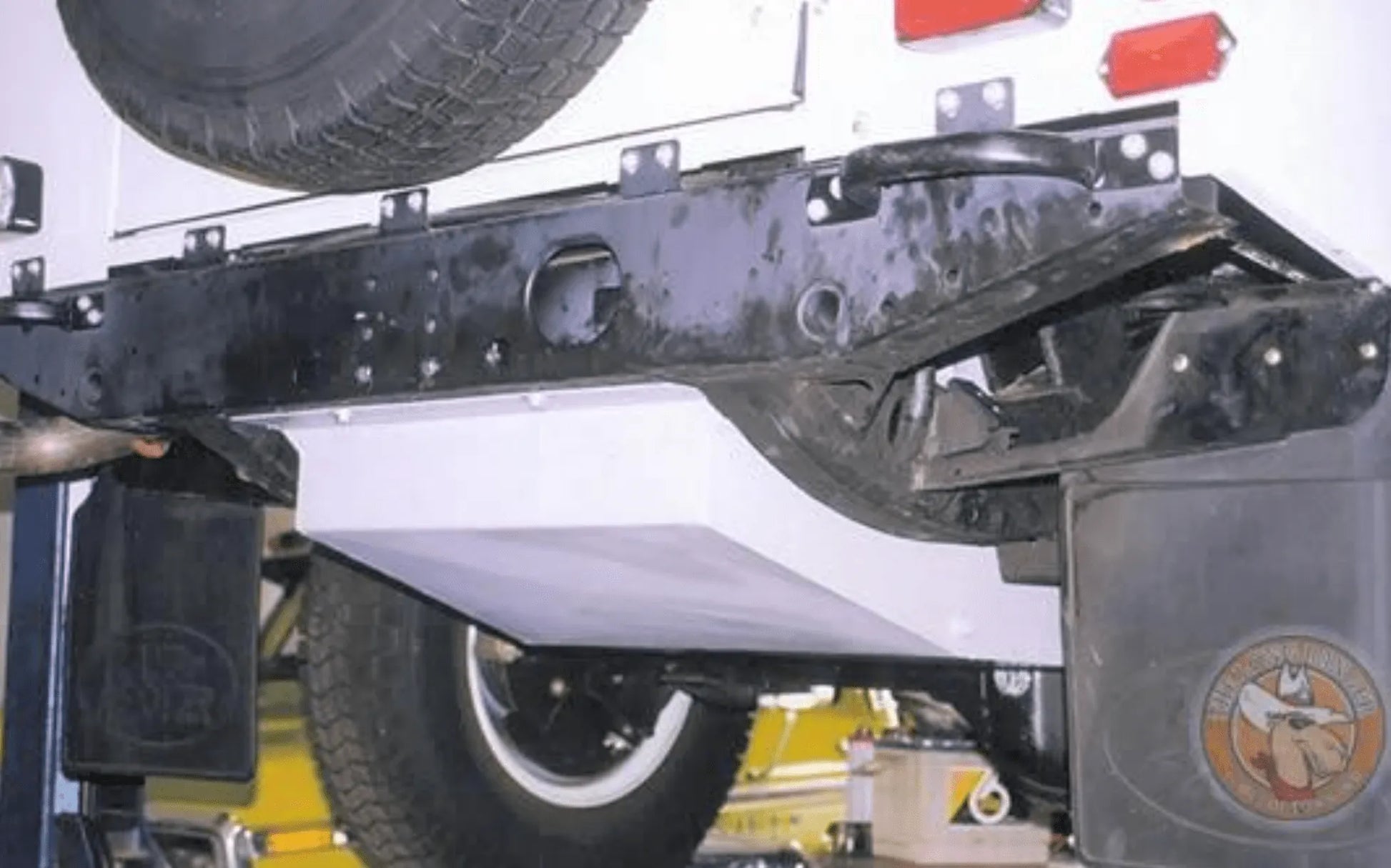

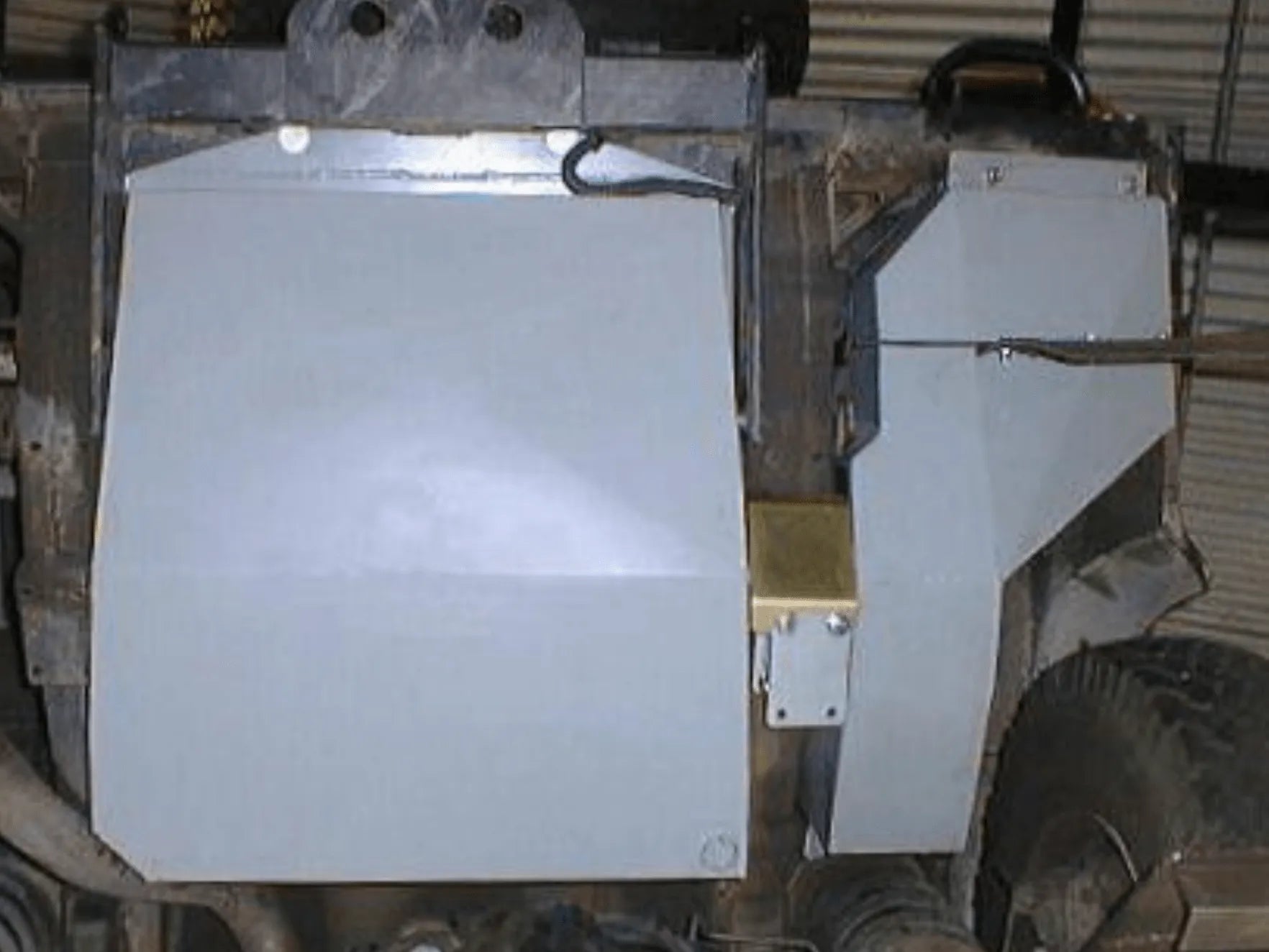

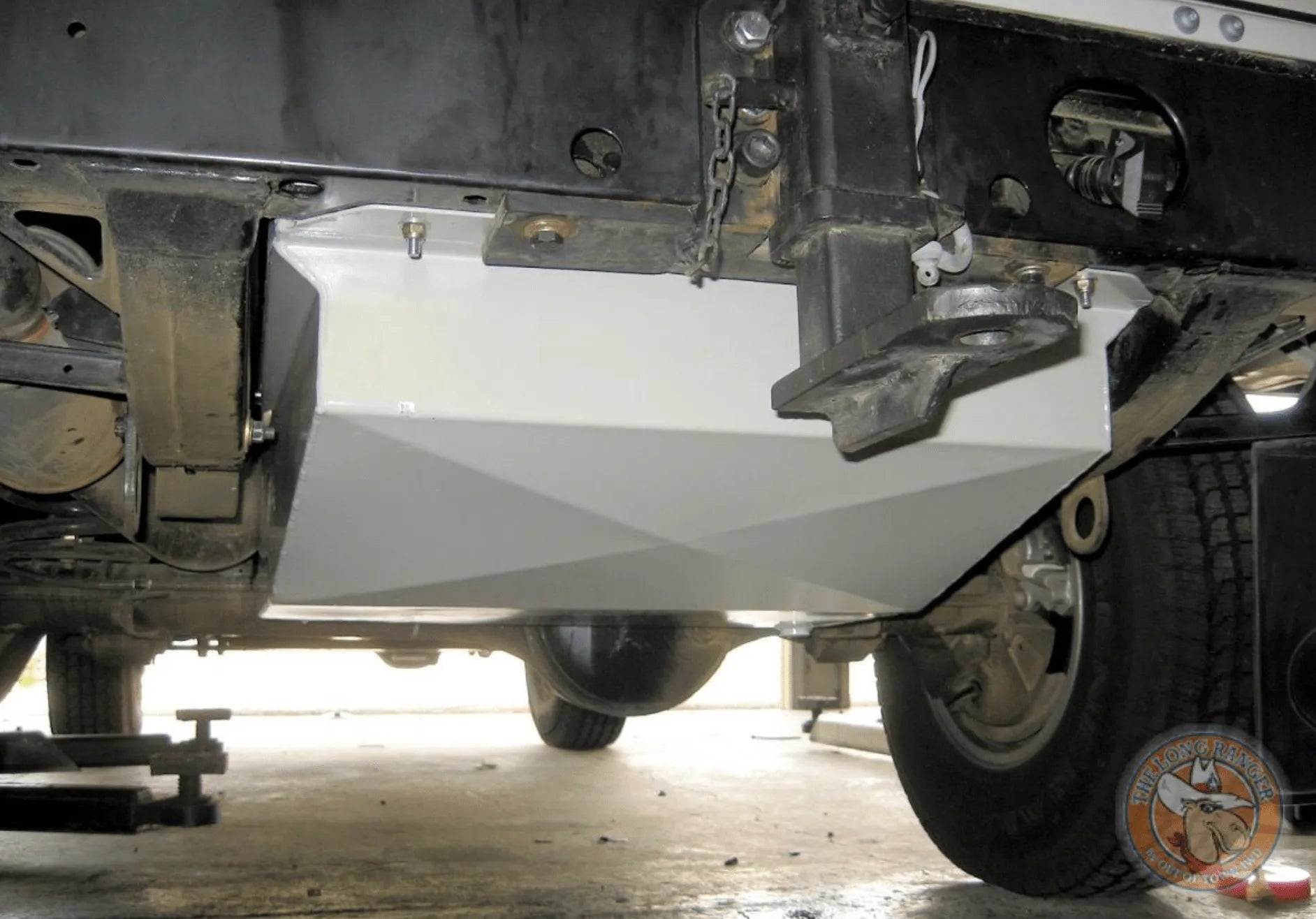

Increase the autonomy of your Land Rover Defender TD4 110 & 130 (10/2007 to 2017)) with the steel tank The Long Ranger. Designed for long journeys and extreme conditions, this robust replacement tank offers a capacity of 127L (or 120L on some models) and installs easily without exhaust modifications.

Key Benefits:

• Increased capacity: Ideal for long off-road adventures.
• Quick installation: Complete kit supplied with pre-drilled holes.
• Reinforced design: Resists vibrations and extreme conditions thanks to internal reinforcement.
• Sustainable material: 2mm aluminized steel with internal partitions.
• Extended Compatibility: Tank suitable for Defender TD4 110 & 130 from 2007.

Technical characteristics :

• Ability : 127L (120L for some TD4)
• Position : Behind the rear differential
• Weight : 45 kg
• Installation time: 180 min
• Material : Aluminized steel
• Dimensions emballage : 125 x 68 x 84 cm
• Requirements: No exhaust modifications required

FAQ - Frequently Asked Questions about this Tank:

Why is the capacity different between models before and after 2007?
For TD4 models (post-2007), vehicles enter "limp" mode when the fuel level is low to protect the high-pressure fuel pump. The Long Ranger tank design maximizes capacity, but a small amount of fuel remains unusable due to the system's built-in safety feature.

Is this tank compatible with SWB models?
No, this tank is only designed for the 110 and 130 LWB models.

Will the fuel gauge still work?
Yes, with adjustments. The kit includes an extended float arm for greater precision.

Do I need an additional skid plate?
No, the tank is designed to withstand impacts thanks to its 2mm steel and internal reinforcements. For extremely difficult terrain, a reinforced version is available.
